SiliconExpert Integration

Augment PCB design and part procurement with SiliconExpert’s electronic part data and supply chain intelligence, sourced directly from component manufacturers.

The SiliconExpert integration automatically adds electronic component data from SiliconExpert to the Altium workspace. Procurement professionals benefit from streamlined workflows. Designers and supply chain specialists work together efficiently, trusting electronic component data.

The SiliconExpert integration allows procurement professionals and designers to co-create. Enriched part information, risk assessments, and a data-rich electronic component search engine transform reactive design decisions into a proactive method for teams to build together in ways never before possible.

Key Capabilities

Integrate Part Data Directly into Your ECAD

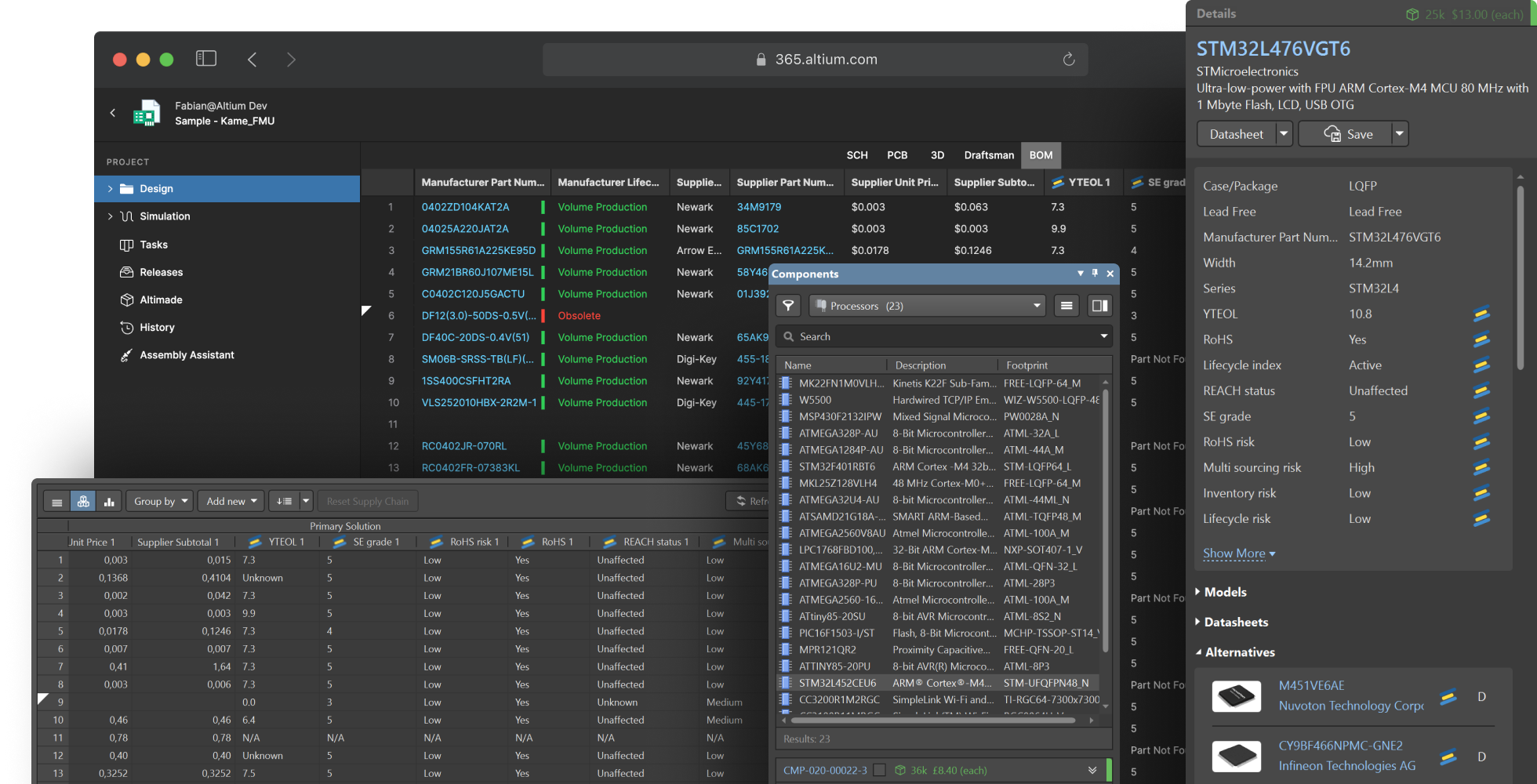

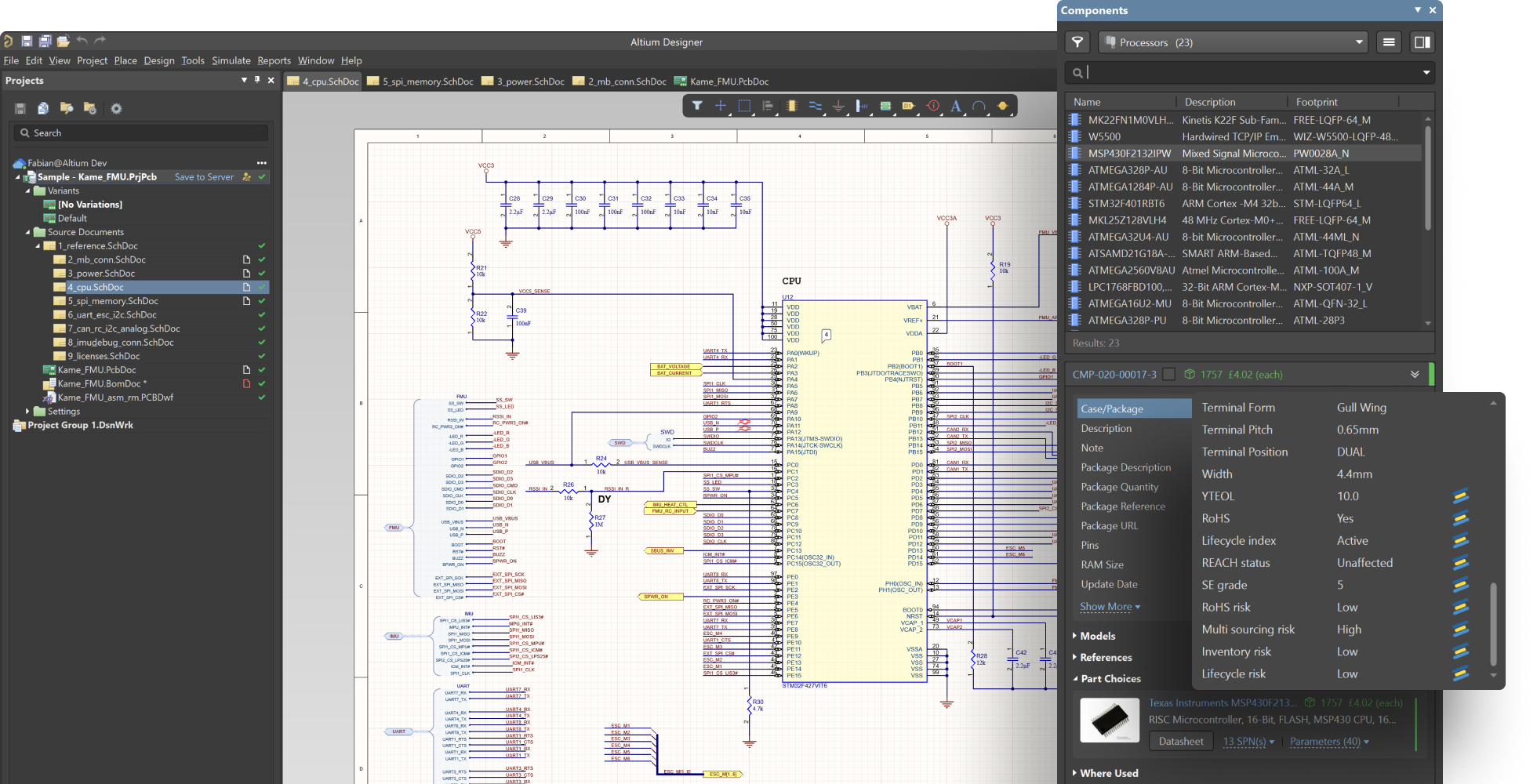

Give your team direct access to extensive electronic component data within Altium Designer and your BOM management workspace. This integration is vital for multidisciplinary stakeholders who need that data to make solid decisions together.

Stream Comprehensive Data From Manufacturers

SiliconExpert offers data on over a billion electronic parts, provided by more than 15,000 unique suppliers. This lets a cross-functional team make design and sourcing decisions with correct data on electronic parts and supply chains.

Provide Reliable Part Data for Every Decision

SiliconExpert maintains high-quality electronic parts data within Altium Develop. Regular updates and strict data integrity protocols ensure that all stakeholders–from procurement to design to engineering–work with accurate information.

Analyze Component Risk for Proactive Mitigation

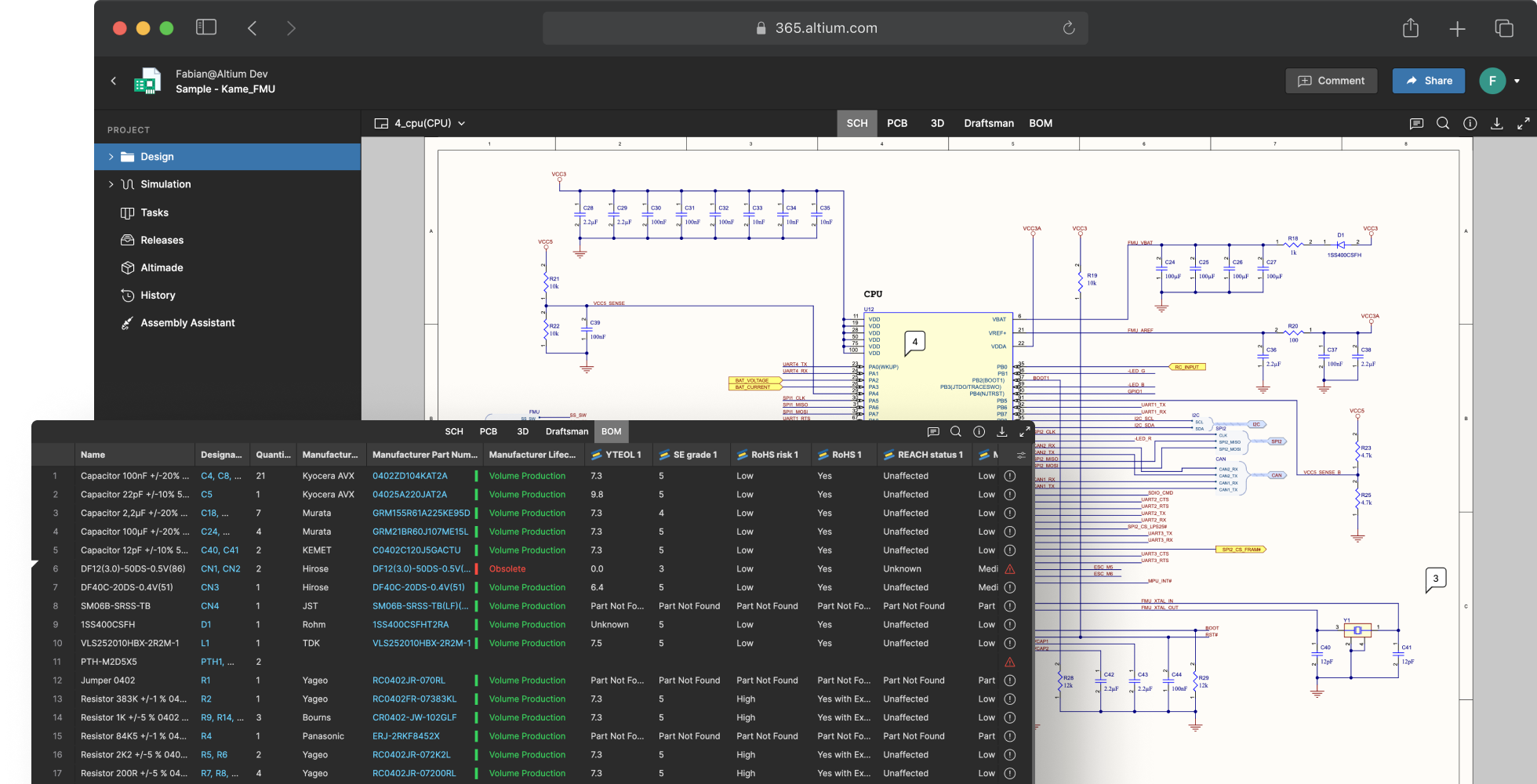

SiliconExpert’s supply chain risk analysis parameters include: Years-to-End-of-Life (YTEOL), lifecycle risk, obsolescence, and multi-sourcing risk. With a complete view of risks, the product development team can move ahead quickly in unison.

Discovering Alternatives

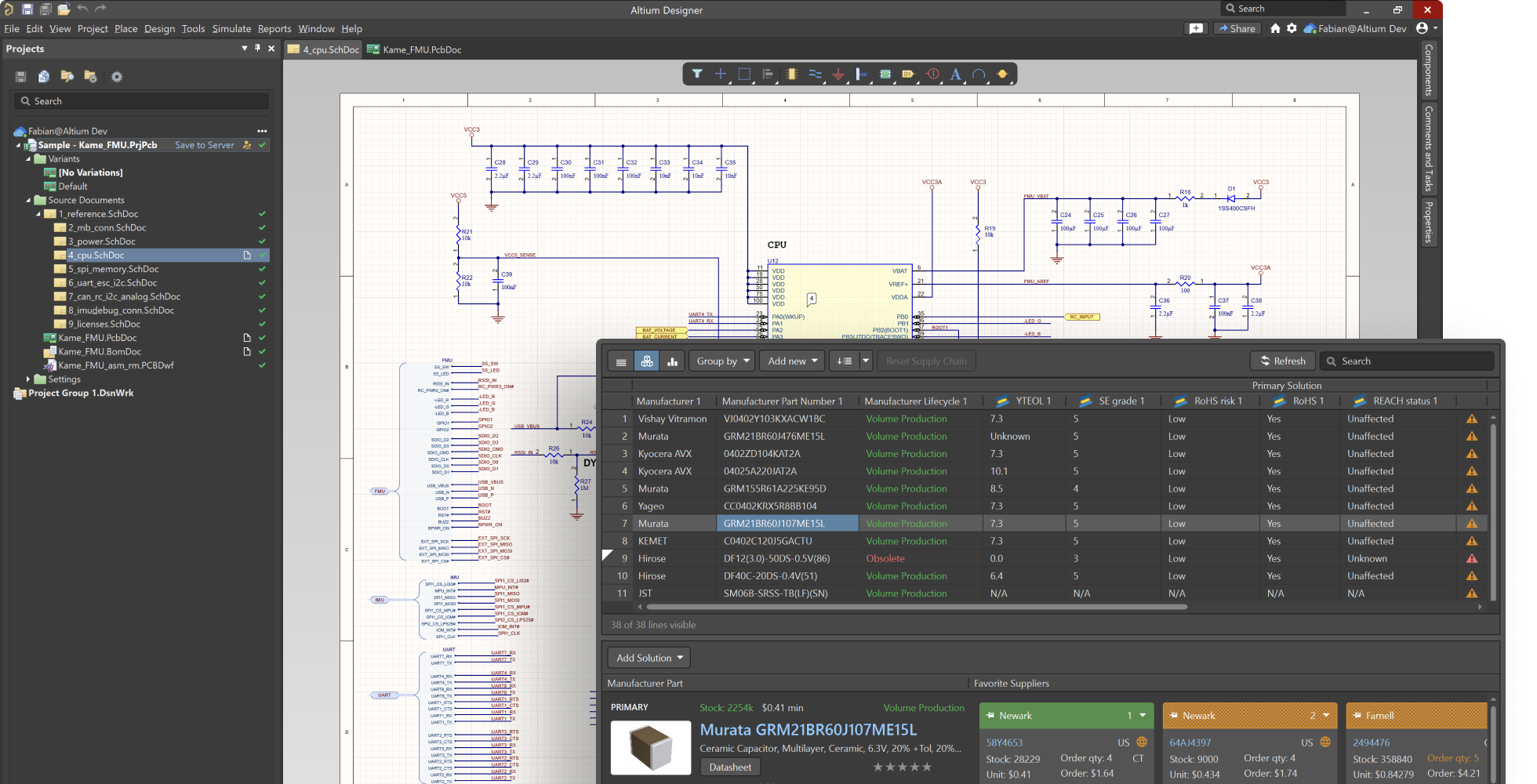

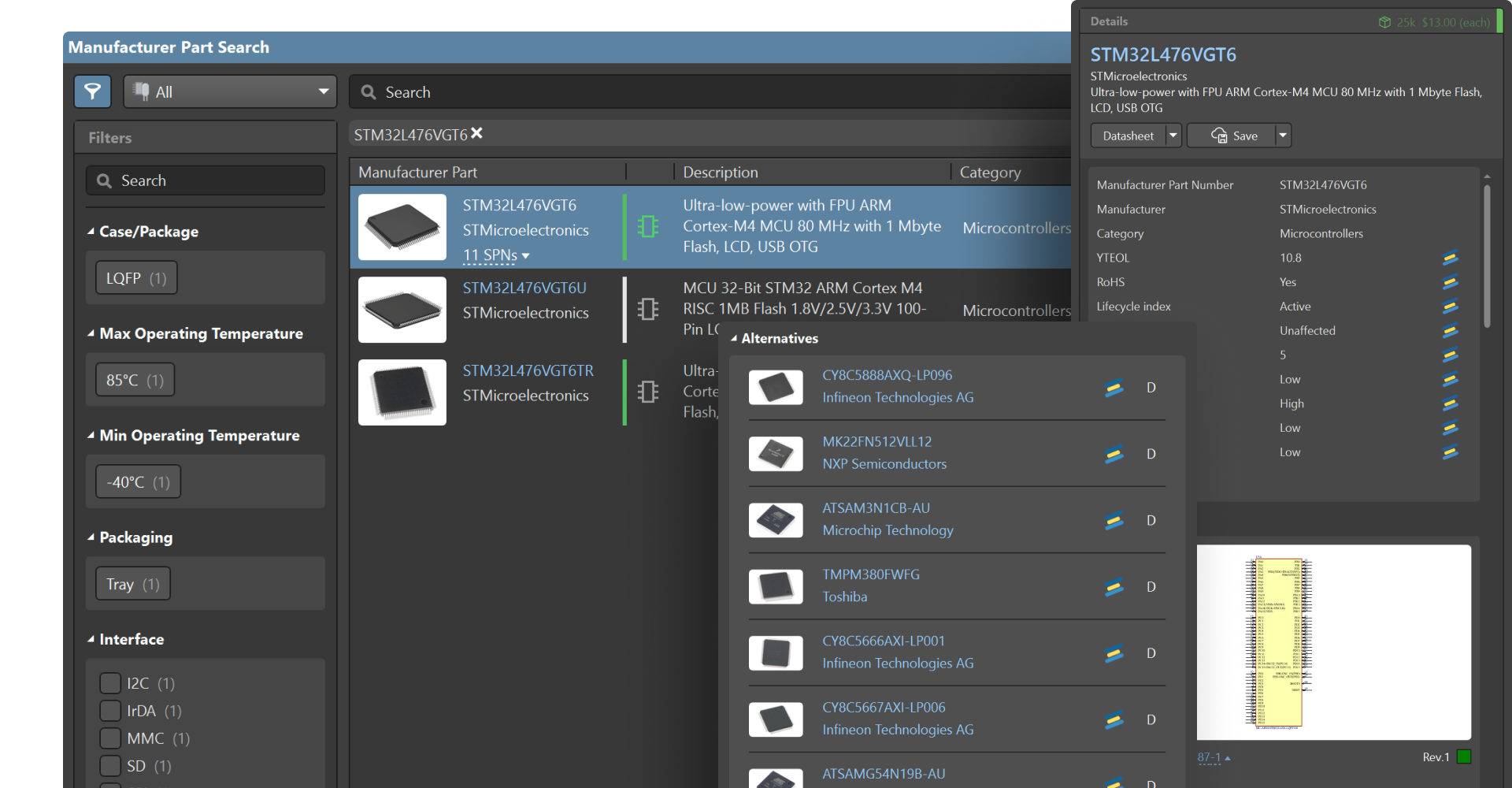

Navigating supply chain complexities and identifying part alternatives can often be a tedious task. The SiliconExpert Integration simplifies this process by aiding in the discovery of the most suitable alternative parts for your project. The intuitive rating system provides at-a-glance insights into the viability of potential replacements, including considerations such as pin mapping compatibility.

FAQs

Arrow

Is the SiliconExpert Integration part of my Altium Develop subscription or is it a separate SiliconExpert subscription?

The SiliconExpert Integration can be purchased separately and is not automatically included in an Altium Develop subscription. The price is determined by the number of annual part queries.

Arrow

What are (unique) part queries and how are they counted?

When you use SiliconExpert to obtain data for a specific electronics component, it is considered one "part query". Should you need to access the same component's data again within the same annual billing period, it will not count as an additional query — each unique part is queried just once per year for billing purposes.

During the annual cycle, you'll have continuous access to the data for the parts you've queried, including any updates provided by SiliconExpert. Once the billing cycle ends, access to the previously retrieved data will be suspended. To view the most current data after this point, a new query for the part will be necessary, which will then be counted in the new billing cycle.

Arrow

Which data from SiliconExpert is currently included?

Currently, we include the following SiliconExpert parameters:

Compliance Risk: Conflict Mineral, RoHS Risk.

Environmental - Global Compliance: California Proposition 65, China RoHS Status, EU SVHC List Version, EURoHS, Persistent Organic Pollutants (POPs), WEEE (Waste Electrical and Electronic Equipment Directive), ELV (End of Life Vehicle Directive).

Environmental - RoHS and REACH Compliance: RoHS Exemption, RoHS Status, RoHS Version, REACH Contains SVHC, REACH Restriction (Annex XVII), REACH SVHC Exceeds Threshold Limit, REACH(SVHC) Information, TSCA (Toxic Substances Control Act.

Environmental - Specific Certifications: Bisphenol A (BPA) Free, Halogen Free, Lead Free, Green (Eco-friendly certification).

Environmental - Substance Restrictions: Global PFAS Assessment Status, Inorganic Phosphorus Content, ODC (Ozone Depleting Chemicals), PFOA (Perfluorooctanoic Acid), PFOS (EU Directive 2006/122/EC), Phthalates Content, Rare Earth Element Information.

General Compliance - Automotive Industry: Automotive, AEC Number, AEC Qualified.

General Compliance - Other Standards: AD-DSL, IEC 62474, NAS411, PPAP (Production Part Approval Process).

Inventory Risk: Inventory Risk, Other Sources.

Lifecycle Risk Information: Estimated EOL Date (End of Life), Lifecycle, Lifecycle Risk, LTB Date (Last Time Buy), Obsolescence, Part Lifecycle Stage, YTEOL (Years-to-End-of-Life).

Military Specifications: FSC (Federal Supply Classification), Military Part Number, Military Specification, Military Taxonomy, NSN (National Stock Number), Vendor Part Number.

Miscellaneous: Alternatives (Crosses), Countries of Origin, ECCN (Export Control Classification Number), HTSUSA (Harmonized Tariff Schedule of the United States), Last Check Date, Schedule B (Export Schedule B Number), SE Grade (Specific Grade or Category), TARIC (Integrated Tariff of the European Communities), UNSPSC (United Nations Standard Products and Services Code).

Multisourcing Risk: Crosses Available Within Part Category, Multi Sourcing Risk.

Overall Risk Assessment: Overall Risk, Overall Risk Percentage.

Arrow

What are the technical requirements to use the SiliconExpert integration?

For Altium Designer:
You need to have at least Altium Designer 23.11 license and need to be connected with your Altium Develop workspace.
We still recommend the latest Altium Designer version to get access to all the latest features.

Your library needs to have Part Choices added, or at least Supplier Links, if you are still using a local library.

For BOM Management:
You need to have a column with the Manufacturer Part Number in your BOM Files.
